GP-KH232HA-CSA-CUA

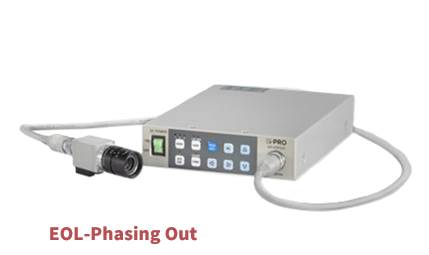

1MOS Full HD Remote Head Camera

i-PRO 1/3-INCH SENSOR 1MOS FULL HD REMOTE HEAD CAMERA WITH 1080P HDMI

  • 1/3” 3.3MP CMOS chip
  • High Definition up to 1080p
  • Multi-format
  • Excellent color reproduction
  • Ultra-compact size

The GP-KH232A 1/3” type, full HD, single MOS sensor delivers superior image resolution with up to 900 TV lines (1080/60p native) in a lightweight compact size. The 1MOS camera system features electronic shutter, gain control, scene file, white balance, electronic zoom, image freezing, flip & mirror and dynamic range expansion, which can be activated to enhance the simultaneous display of light and dark objects.

The system employs a 1/3-inch high resolution CMOS chip and a DSP, which enables the digital HD camera head to be very small in size. The camera system provides outstanding sharpness, impressive true colors, and a flicker-free image.

It is ideal for mounting on a surgical microscope. Plus, it enables hospitals to upgrade existing surgical microscopes from SD to HD.

The GP-KH232A includes the remote camera head GP-UH232HA and the CCU Control Unit GP-KH232CUA & GP-KH232CSA.

The remote camera head module weighs approximately 43g (0.1 lbs.) and measures only (W x H x D): 28mm x 27mm x 39mm (1 3/32” x 1 1/16” x 1 17/32”).

For more information please contact us.

1/3 type, full HD, single MOS sensor delivers superior image resolution (1080/60p native) 900 TV lines. Ideal for mounting on a surgical microscope. Enables hospitals to upgrade existing surgical microscopes from SD to HD. Compact, lightweight remote camera head module weighs approximately 43g (0.1 lbs.), measures only (WHD): 28 x 27 x39mm (1-3/32 x 1-1/16 x 1-17/32 in.)

The GP-KH232A includes an ultra-compact sized FULL HD 1080p 1MOS remote camera head GP-KH232HA and the CCU Control Unit GP-KH232CUE & GP-KH232CSE.

KH232E_4



2 GP-KH232HM Head2
7 GP-KH232 CCU Interface
8 GP-KH232 Cable




Camera

COMPONENT SPECIFICATION
Image Sensor 1/3” type Full HD MOS sensor
Required Illumination 2000 lx (3200K, F8)
Minimum Illumination 5 lx (F1.4, GAIN: HIGH, 30% output, screen center)
Horizontal Resolution 900 TV lines (at center, when 1080i output)
S/N 54dB (when 1080i output)
Lens Mount C Mount
Dimensions 28 mm (W) x 27 mm (H) x 39 mm (D)
(1-3/32 inches (W) x 1-1/16 inches (H) x 1-17/32 inches (D))
(excluding the tripod mount base and projections)
Weight 48g

CCU

COMPONENT SPECIFICATION
Frequency 50 Hz or 59.94 Hz (switchable)
RGB/YPbPr Output 1x D-sub 9 pin connector
G : 1.0 V[P-P]/75 Ω
R, B : 0.7 V[P-P]/75 Ω
Y : 1.0 V[P-P]/75 Ω
HDMI Output 1x HDMI connector
HD SDI Output 1x BNC connector
Video Format RGB/YPBPR output 1080/59.94i、1080/29.97p(sF)、720/59.94p、480/59.94p、
480/59.94i、1080/50i、1080/25p(sF)、720/50p、576/50p、576/50i
Video Format HDMI output 1080/59.94i、1080/29.97p(sF)、720/59.94p、480/59.94i、
1080/50i、1080/25p(sF)、720/50p、576/50i
Video Format SDI output (GP-KH232CSA only) 59.94 Hz : 1080/59.94i, 1080/29.97p (sF),
720/59.94p, 480/59.94i
50 Hz : 1080/50i, 1080/25p (sF),
720/50p, 576/50i
Synchronization Internal or External
External Control RS232C signal level compliant (via 3.5mm mini jack)
Power Supply 12VDC ±10 %
Power Consumption Approx. 7.8W (including camera head)(GP-KH232CUA)
Approx. 8.8W (including camera head)(GP-KH232CSA)
Function Camera title, ELC, Electronic shutter, Gain adjustment,
Electronic sensitivity enhancement, 3x Scene file, Video format select, White balance
Dimensions 120 mm (W) x 36 mm (H) x 157 mm (D)
(4-3/4 inches (W) x 1-13/32 inches (H) x 6-3/16 inches (D))
(excluding rubber feet and projections)
Weight Approx. 660 g (1.46 lbs.) (GP-KH232CUA)
Approx. 680 g (1.5 lbs.) (GP-KH232CSA)
Operating Temperature 0 °C to +40 °C {–32 °F to +104 °F}
Operating Humidity 30% to 90% (without condensation)
